ממשק
|
5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
|
|
רשת מדיה
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100¦¸ STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100¦¸ STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100¦¸ STP (maximum 100m)
|
|
Fan Quantity
|
Fanless
|
|
הספק
|
External Power Adapter(Output: 48VDC / 1.25A)
|
|
PoE Ports (RJ45)
|
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
|
|
Backbound Bandwidth
|
10Gbps
|
|
Mac Address Table
|
2K
|
|
מידות
|
3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
|
|
Max Power Consumption
|
3.95W(220/50Hz. no PD connected)
64.44W(220/50Hz. with 55W PD connected)
|
|
Max Heat Dissipation
|
13.48BTU/h(no PD connected)
219.87BTU/h(with 56W PD connected)
|
|
תכונות
|
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
|
|
Transfer Method
|
Store-And-Forward
|
|
אחר
|
Certification FCC, CE, RoHS

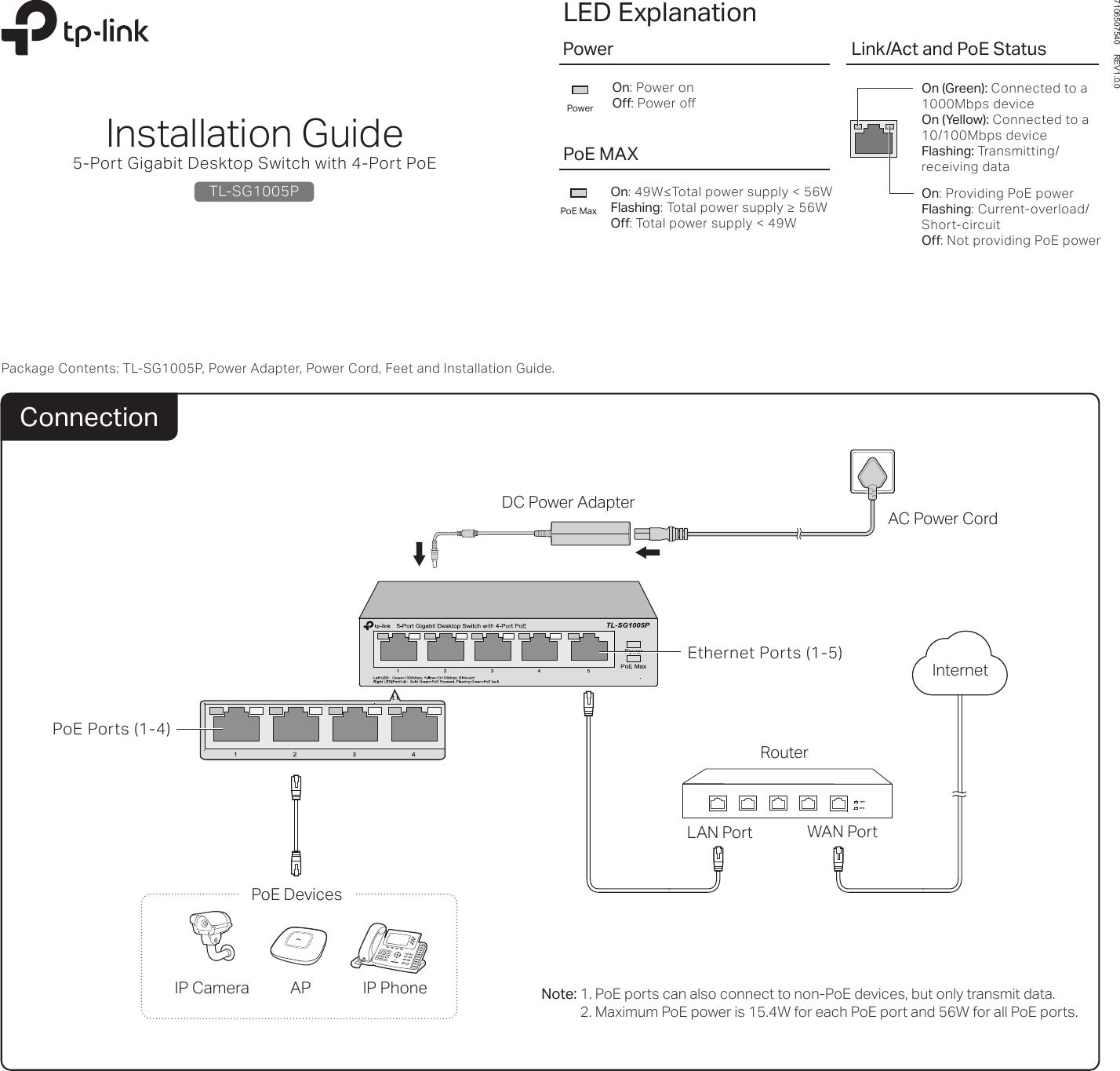

Package Contents TL-SG1005P, Power Adapter, Installation Guide
Consumption 4.26 watts (max. no PD connected)
63.31 watts (max. with 56w PD connected)
Environment Operating Temperature: 0¡ז~40¡ז (32¨H~104¨H)
Storage Temperature: -40¡ז~70¡ז (-40¨H~158¨H)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
|
|
