מאפיינים
|
Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 27dBm/500mw
• System-level optimizations for more than 5km long range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System - Pharos Control
• AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
|
|
מעבד
|
Qualcomm Atheros 560MHz CPU, MIPS 74Kc
|
|
זכרון
|
64MB DDR2 RAM, 8MB Flash
|
|
ממשק
|
1x10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1x10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1xGrounding Terminal
1xReset Button
|
|
מתח
|
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
|
|
צריכת מתח
|
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
|
|
מידות
|
224x 79 x 60 mm
|
|
סוג אנטנה
|
Built-in 9dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 65¡ד (H-Plane) / 35¡ד (E-Plane)
Note: For more details, please refer to datasheet
|
|
הגנה
|
15KV ESD Protection
6KV Lightning Protection
|
|
Enclosure
|
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
|
|
מאפייני אלחוטיים
|
Wireless Standards
IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol
TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency
2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power
27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
|
|
תצורות אלחוטיות
|
Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
|
|
ניהול
|
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
|
|
כלי מערכת
|
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
|
|
אופטימיזציות ברמת המערכת
|
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
|
|
מאפייני מתאם POE
|
Dimensions(W x D x H)
110*57*33.5mm
Input Current
0.8A Max @ 100VAC
Input Voltage
100VA~240VAC @ 50Hz~60Hz
Output
24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency
>80%
Output Voltage
24VDC(+4,5pins; -7,8pins)
Input
100-240VAC, 50/60Hz
Power Status LEDs
0~0.8A: Green
0.8A~1.0A: Red
Certifications
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Interfaces
1 AC Jack with Earth Ground
1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100/1000Mbps Shielded Ethernet Port (Data)
Button
Remote Reset Button
|
|
תקנים
|
CE, FCC, RoHS, IPX5
|
|

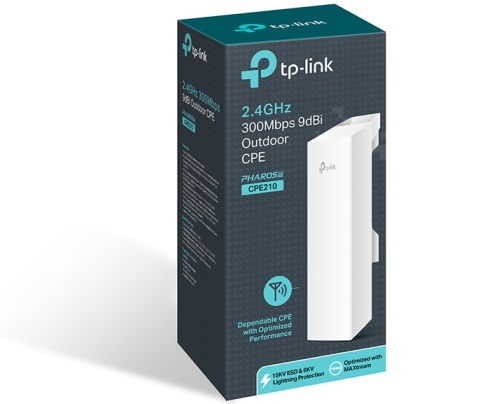

תכולת האריזה
|
Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
|
|
דרישות מערכת
|
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
|
|
תנאי סביבה
|
Operating Temperature: -30¡דC~70¡דC (-22¨H~158¨H)
Storage Temperature: -40¡ז~70¡ז (-40¨H~158¨H)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
|
|
