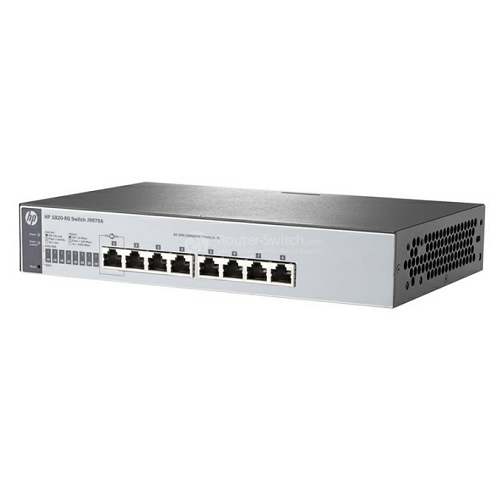

I/O Ports & Slot
|
8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);
Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Supports a maximum of 8 autosensing 10/100/1000 ports
|
|
זכרון מעבד
|
Packet buffer size: 1.5 Mb
|
|
Mounting & Enclosure
|
Desktop (rear port)
|
|
ביצועים
|
100 Mb Latency: < 3 לs
1000 Mb Latency: < 2.6 לs
Throughput: up to 11.8 Mpps
Routing/Switching capacity: 16 Gbps
MAC address table size: 4096 entries
|
|
Environment
|
Operating temperature: 32°F to 104°F (0°C to 40°C)
Operating relative humidity: 15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature: -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity: 15% to 95% @ 104°F (40°C), noncondensing
Acoustic: Fanless
|
|
Electrical Characteristics
|
Frequency: 50/60 Hz
Voltage: 100 - 240 VAC, rated
Maximum power rating: 4.5 W
Notes: Maximum power rating and maximum heat dissipation are the worstcase theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. Maximum power rating and maximum heat dissipation are the worstcase theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
|
|
Safety
|
EN 60950/IEC 60950; UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03
|
|
Emissions
|
FCC Rules Part 15, Subpart B Class A
|
|
Immunity
|
Generic: EN 55022 CISPR 22
EN: EN 55024, CISPR 24
ESD: IEC 61000-4-2
Radiated: IEC 61000-4-3
EFT/Burst: IEC 61000-4-4
Surge: IEC 61000-4-5
Conducted: IEC 61000-4-6
Power frequency magnetic field: IEC 61000-4-8
Voltage dips and interruptions: IEC 61000-4-11
Harmonics: IEC 61000-3-2
Flicker: IEC 61000-3-3
|
|
Standards & Protocols
|
General protocols:
IEEE 802.1p Priority
IEEE 802.3ab 1000BASE-T
IEEE 802.3ae 10-Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3i 10BASE-T Ethernet over twisted pair
IEEE 802.3u 100BASE-TX Fast Ethernet, 100BASE-FX with autonegotiation
IEEE 802.3x Flow Control
IEEE 802.3z 1000BASE-X Gigabit Ethernet over fiber
|
|
מידות
|
15.77x 10.49 x 2.69 cm
|
|
משקל
|
0.5 kg
|
|
